Mobile Concrete Batching Plant
A complete concrete production line on a single road-legal chassis — batching, conveying, mixing, and control integrated as one. No foundations: level the trailer, connect power and water, and batch the same day.
Overview

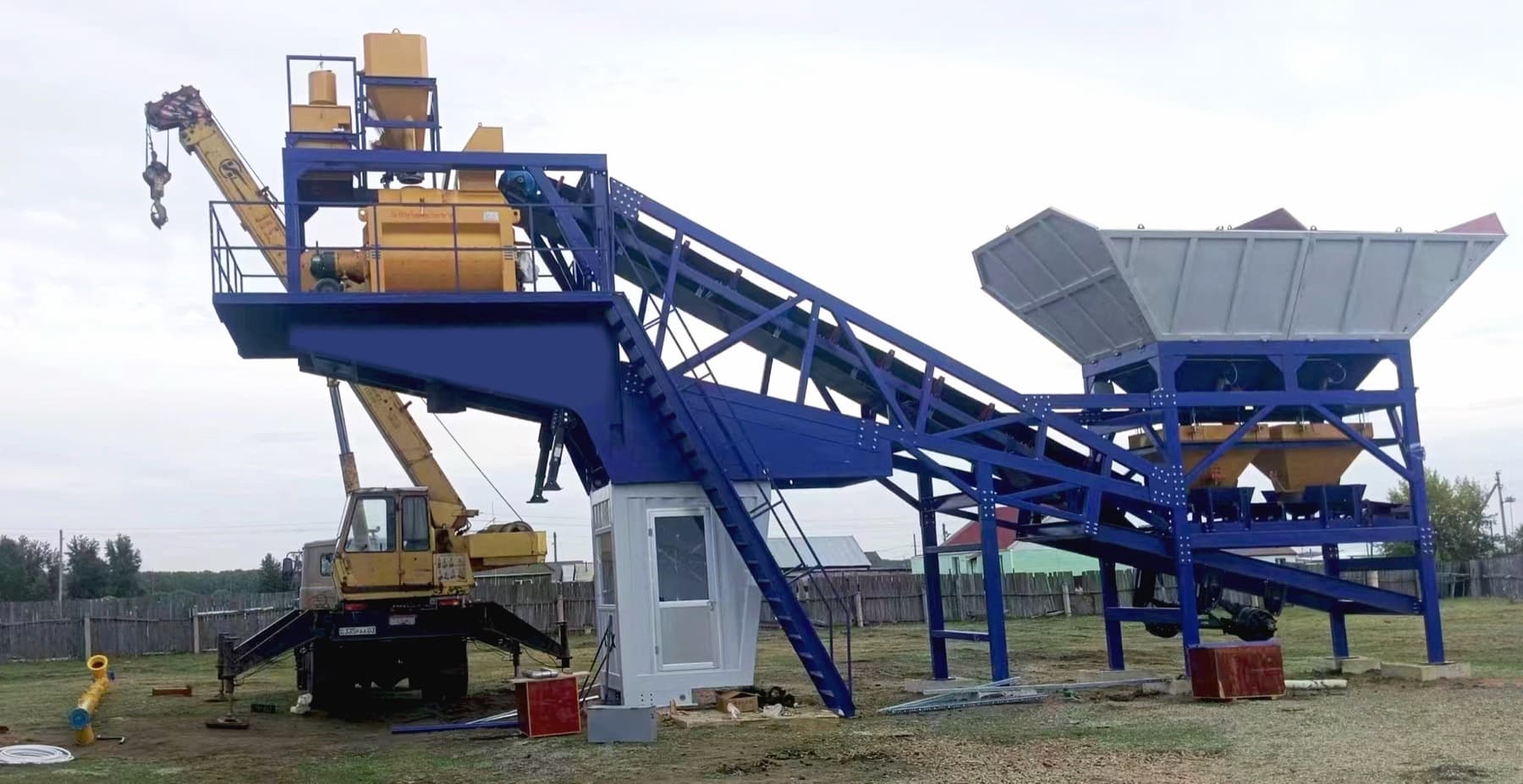

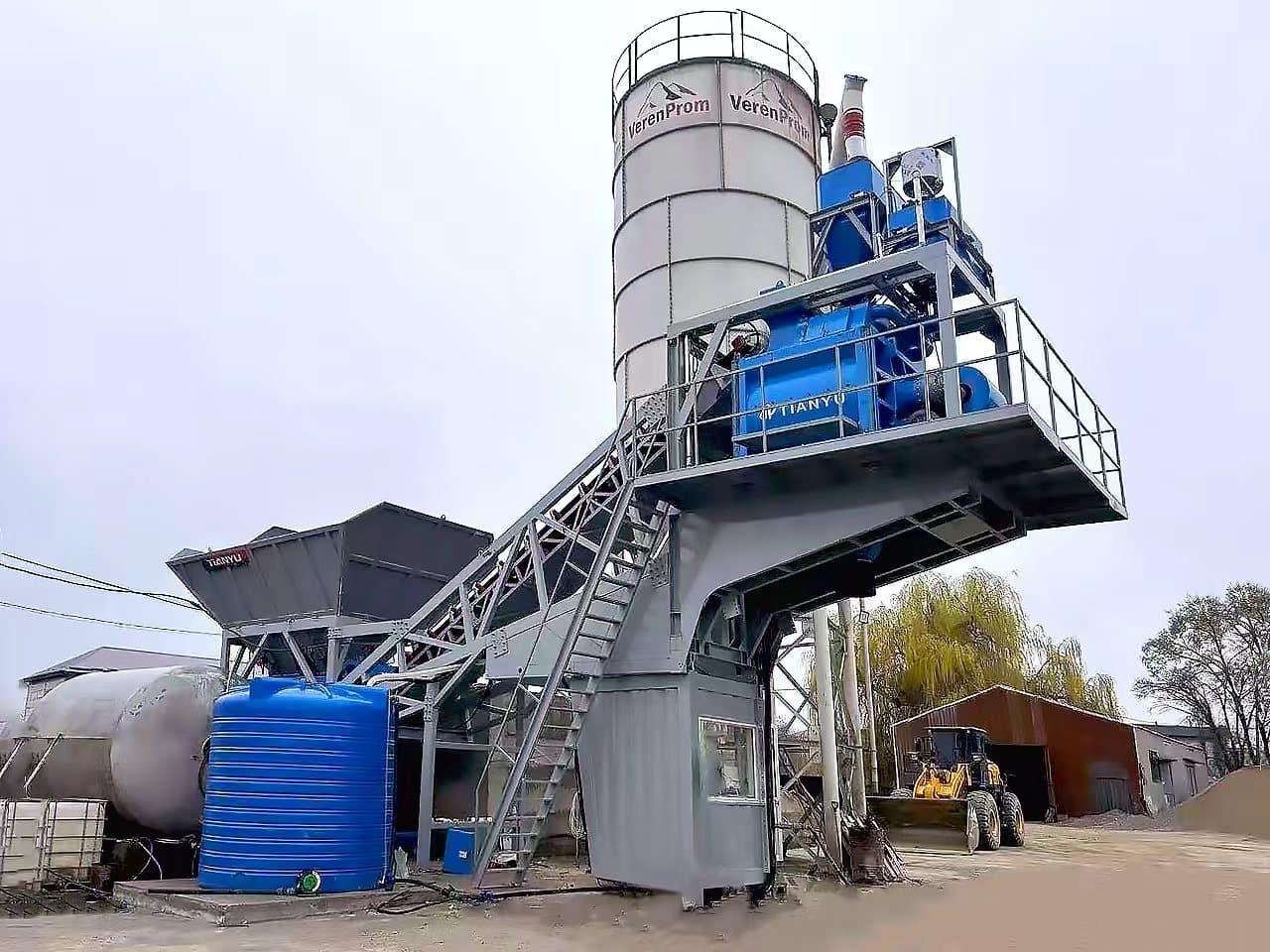

A fully integrated concrete production line on a mobile chassis — "a mobile concrete factory." The batching, conveying, mixing, and control systems are combined into one unit that travels whole on a road-legal trailer, with no complex disassembly and no foundation work: level the trailer, connect power and water, and batch the same day. TIANYU's own twin-shaft mixer holds stationary-grade concrete quality, and computer control offers manual, semi-automatic, and fully automatic modes. Models run HZSY25 through HZSY100, plus the HZSY150 variant — with units already commissioned overseas in markets including Kazakhstan and Malaysia.
Key Features

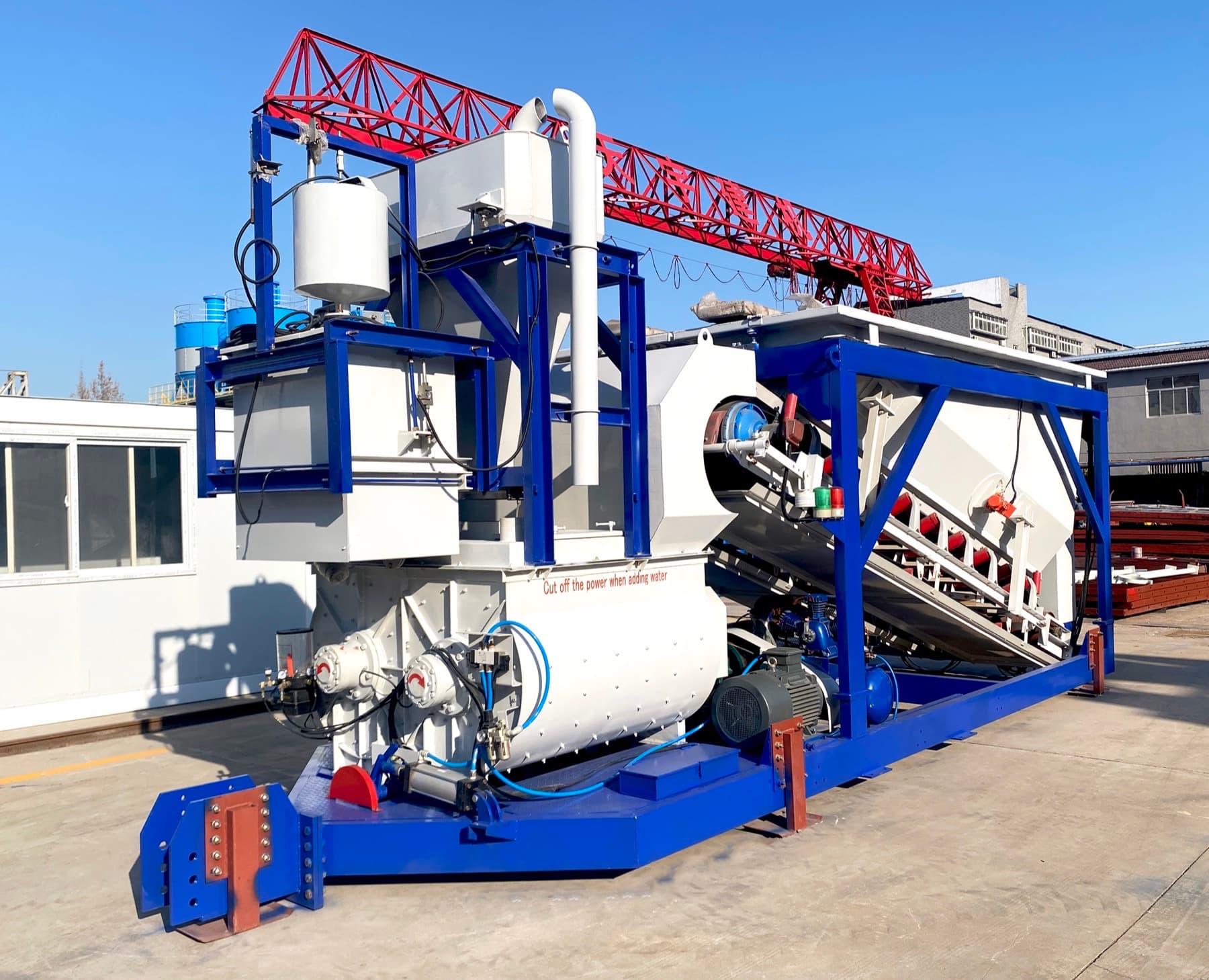

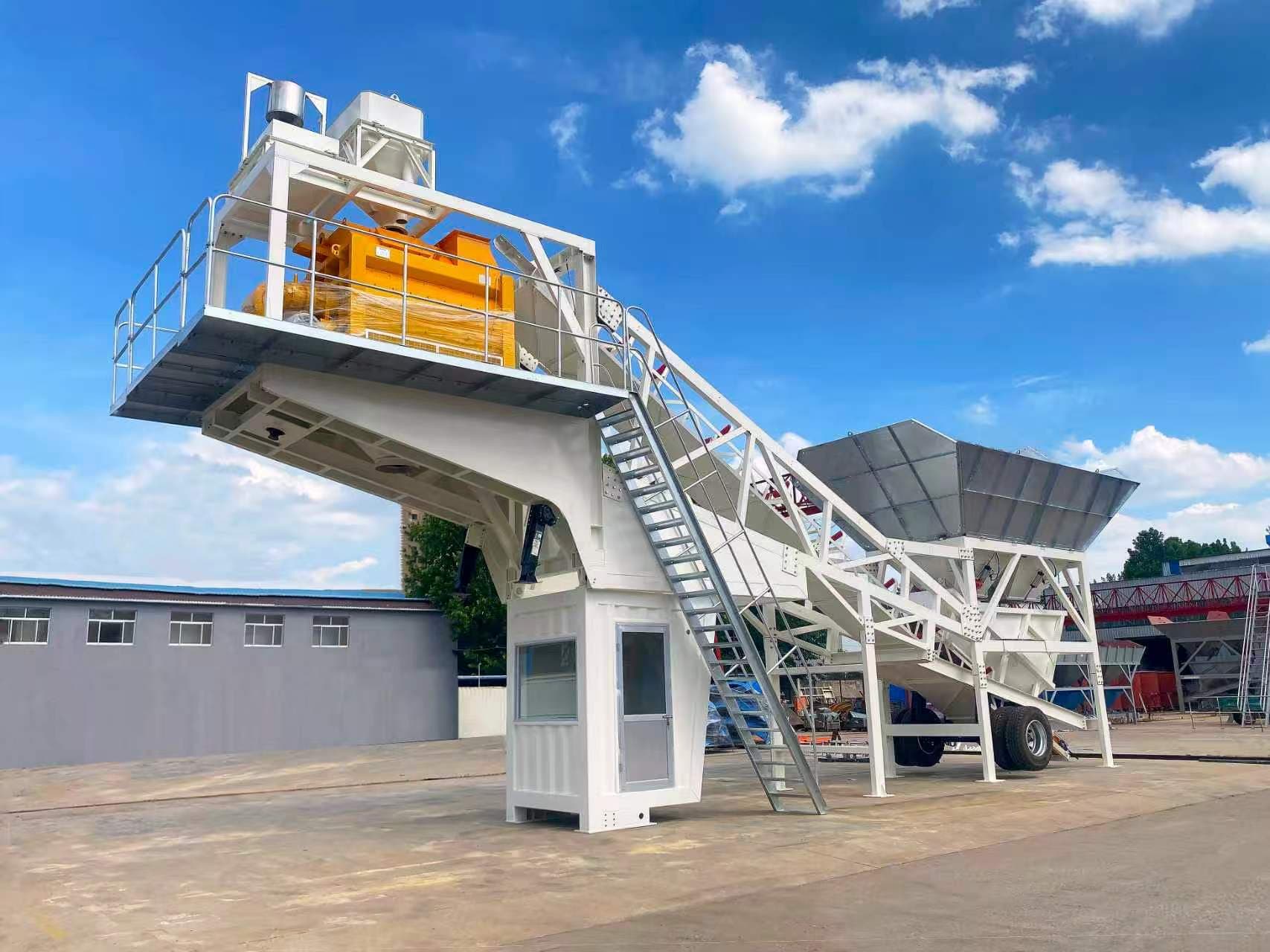

- Integrated trailer design — road-legal and easy to transfer between sites

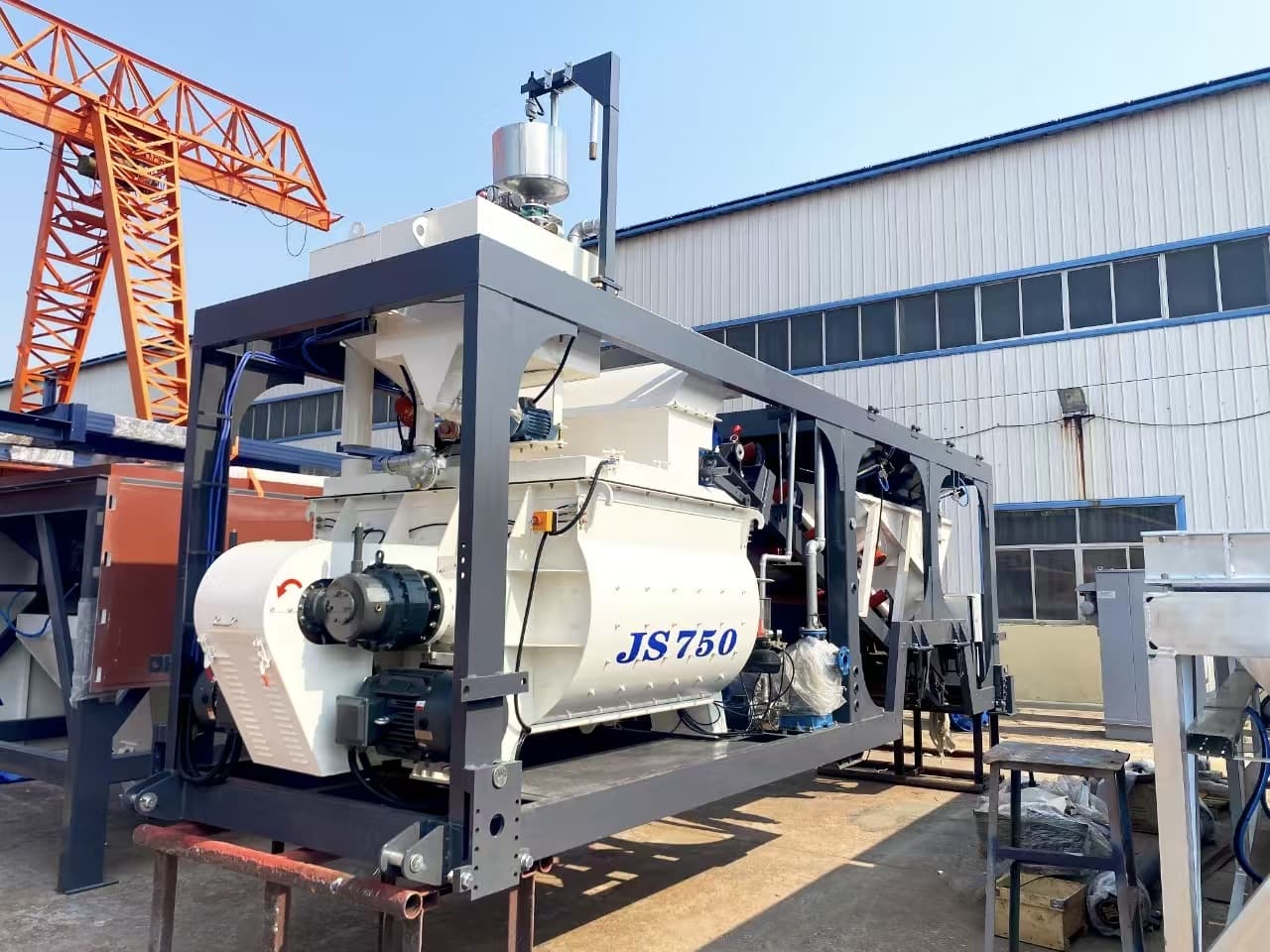

- TIANYU self-developed mixer with high-quality wear-resistant parts for longer life
- Compact structure and small footprint, with components arranged for easy maintenance
- High-quality accessories for more stable operation and a low failure rate
- Computer control with manual, semi-automatic, and fully automatic modes
Technical Parameters
Capacity range for the mobile concrete batching plant. Final configuration is confirmed per order — contact us for a project-specific data sheet.
| Parameter | HZSY25 | HZSY35 | HZSY50 | HZSY75 | HZSY100 | HZSY150 |
|---|---|---|---|---|---|---|
| Productivitym³/h | 25 | 35 | 50 | 75 | 100 | 150 |
| Mixer | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 |
| Mixer powerkw | 18.5 | 30 | 2×18.5 | 2×30 | 2×37 | 2×55 |
| Max aggregate sizemm | 60/40 | 60/40 | 80/60 | 80/60 | 80/60 | 80/60 |
| Feeding capacityL | 750 | 1150 | 1500 | 2250 | 3000 | 4500 |
| Discharging capacityL | 500 | 750 | 1000 | 1500 | 2000 | 3000 |
| Aggregate hopper capacitym³ | 2×8 | 2×8 | 4×6 | 4×8 | 4×8 | 4×25 |
| Aggregate batching capacityL | 800 | 1200 | 1600 | 2400 | 3200 | 4800 |
| Belt conveying capacityt/h | 300 | 300 | 300 | 600 | 600 | 800 |
| Screw conveying capacityt/h | 40 | 40 | 40 | 40-70 | 40-70 | 40-70 |
| Discharge heightm | 4.0 | 4.0 | 4.0 | 4.0 | 4.2 | 4.2 |
| Installed powerkw | 67 | 79 | 92 | 120 | 170 | 240 |
