Stationary Batching Plants

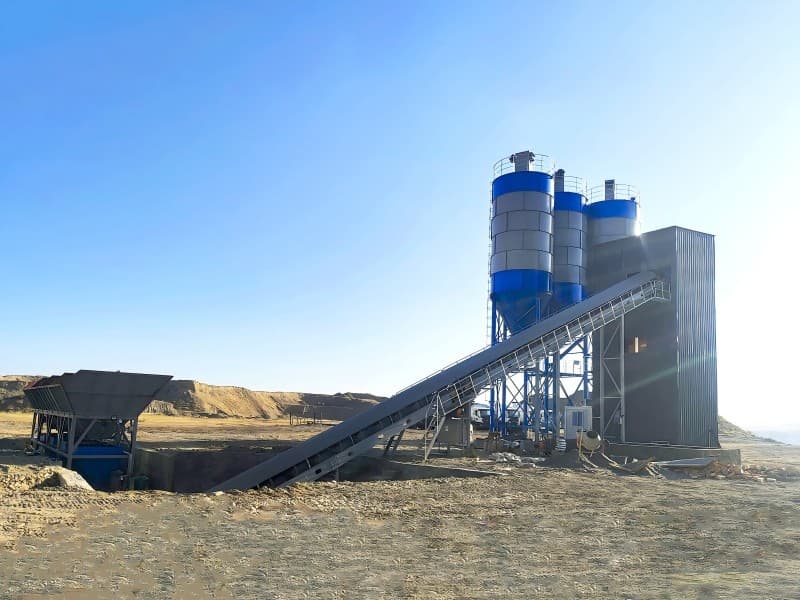

HZS180
TIANYU's most-exported large plant
The HZS180 leads TIANYU's export record, with multiple containerised deliveries including fully galvanized units. With a JS3000 mixer and four-bin batcher it supplies large infrastructure programmes and high-volume commercial production.
Technical Data
Specifications
| Parameter | Value |
|---|---|
| Production Capacity | 180m³/h |
| Mixer | JS3000 twin-shaft |
| Mixer Discharge | 3.0m³/batch |
| Aggregate Batcher | PLD4800 · 4 bins |
| Max Aggregate Size | 100mm |
| Discharge Height | 4.2m |
| Total Installed Power | ≈240kW |
Specifications are indicative for this model line and confirmed per order configuration. Contact us for a project-specific data sheet.
Engineering
Key features
- Repeatedly proven in containerised export shipments
- Engineering configuration available for dam and highway programmes
- Fully galvanized option for long-life corrosion protection
- Top-mounted silo variant available (HZS180–300 series)
Typical applications
- Large ready-mix operations
- Dams, highways, high-speed rail
- Export infrastructure programmes
