Stationary Batching Plants

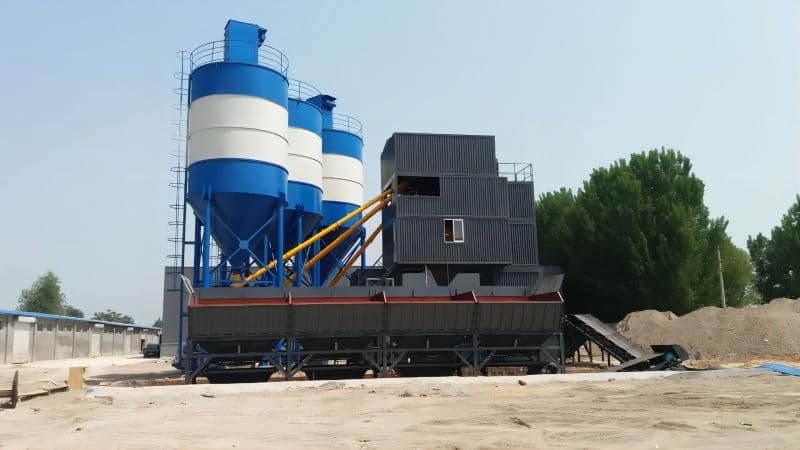

HZS25
Compact batching for small to mid-scale projects
The HZS25 is the entry point to the TIANYU stationary range: a hopper-lift plant with a compact footprint and simple foundations. It suits rural infrastructure, precast yards, and contractors producing concrete close to the pour.
Technical Data
Specifications
| Parameter | Value |
|---|---|
| Production Capacity | 25m³/h |
| Mixer | JS500 twin-shaft |
| Mixer Discharge | 0.5m³/batch |
| Aggregate Batcher | PLD1200 · 3 bins |
| Max Aggregate Size | 60mm |
| Discharge Height | 3.8m |
| Total Installed Power | ≈45kW |
Specifications are indicative for this model line and confirmed per order configuration. Contact us for a project-specific data sheet.
Engineering
Key features
- Hopper-lift feeding — minimal footprint and civil works
- Twin-shaft forced mixer for uniform consistency
- Self-developed control software with optimised feeding sequence
- Modular structure for fast installation and relocation
Typical applications
- Rural roads and bridges
- Small precast component production
- Site batching for building contractors
