Mobile Batching Plants

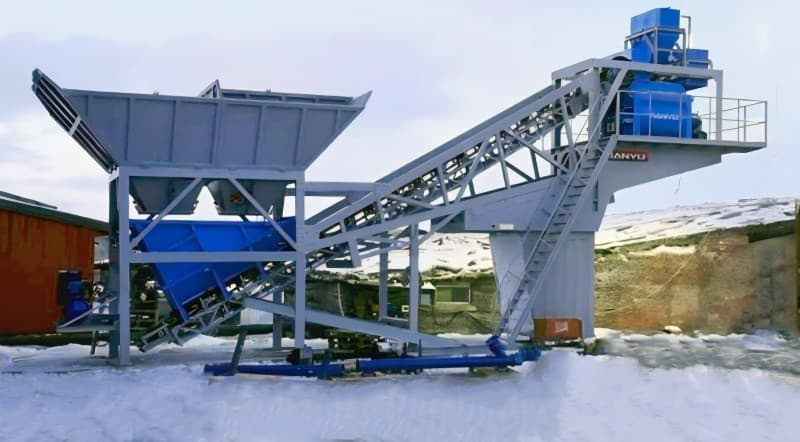

YHZS100
Top of the mobile range
The YHZS100 delivers 100 m³/h from a relocatable plant — the largest in TIANYU's mobile series (YHZS25–100). High-discharge layout suits direct loading of large mixer fleets on major temporary works.
Technical Data
Specifications
| Parameter | Value |
|---|---|
| Production Capacity | 100m³/h |
| Mixer | JS2000 twin-shaft |
| Mixer Discharge | 2.0m³/batch |
| Aggregate Bins | 4 |
| Chassis | Towable trailer, modular silo package |
| Total Installed Power | ≈140kW |
Specifications are indicative for this model line and confirmed per order configuration. Contact us for a project-specific data sheet.
Engineering
Key features
- Highest-output mobile configuration in the range
- High-discharge variant for large truck mixers
- Modular silos and conveyors relocate with the plant
- Centralised control room with TIANYU batching software
Typical applications
- Major temporary works
- Airport and port construction
- Large-scale phased developments
